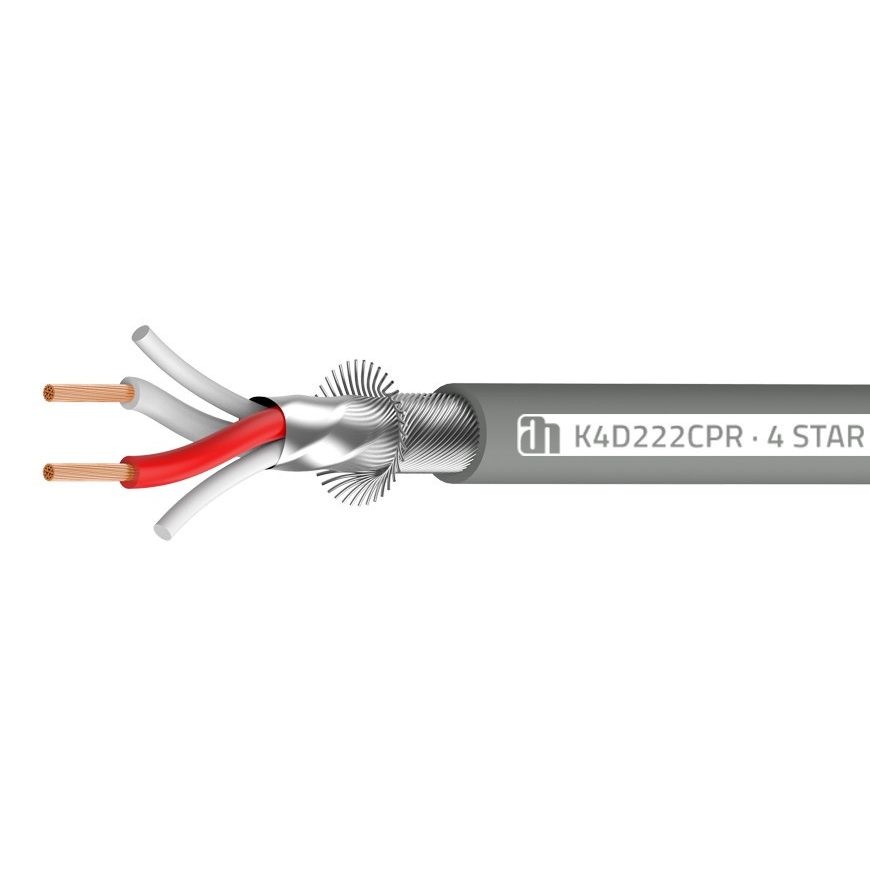

Adam Hall 4D222CPR

Name: Adam Hall 4D222CPR
Brand: Adam Hall
SKU: 97082
Availability: InStock

2,00 €

MSRP: ~~2,30 €~~

DMX, AES/EBU Cable | 0.22 mm² AWG24 | LSZH & FRNC (Class: Eca)

Indoor installation cable from our 4 STAR “Standard” SERIES
Tested and approved for BauPVO class: Eca
With special jacket for heavy flammability and halogen-free
Light stiffness, perfect for passing through e.g. narrow cable ducts in the wall

Brand: Adam Hall

Opis
Recenzije (0)

Opis

Product type: Bulk Cable
Type: DMX & AES/EBU Cable, Installation Cable
Color: grey
Overall diameter: 5 mm
AWG: 24
Center conductor cross section: 0.22 mm²
Center conductor material: OFC
Center conductor construction: 7 x 0.20 mm
Number of internal conductors: 2
Shield material: Copper galvanized
Shield: woven
Line surge impedance: 120 Ohm(s)
Line resistance: < 85 Ohm(s)
Capacitance: 45 pF/m
Temperature range: -40 – 105 °C
Weight: 0,04575 kg
