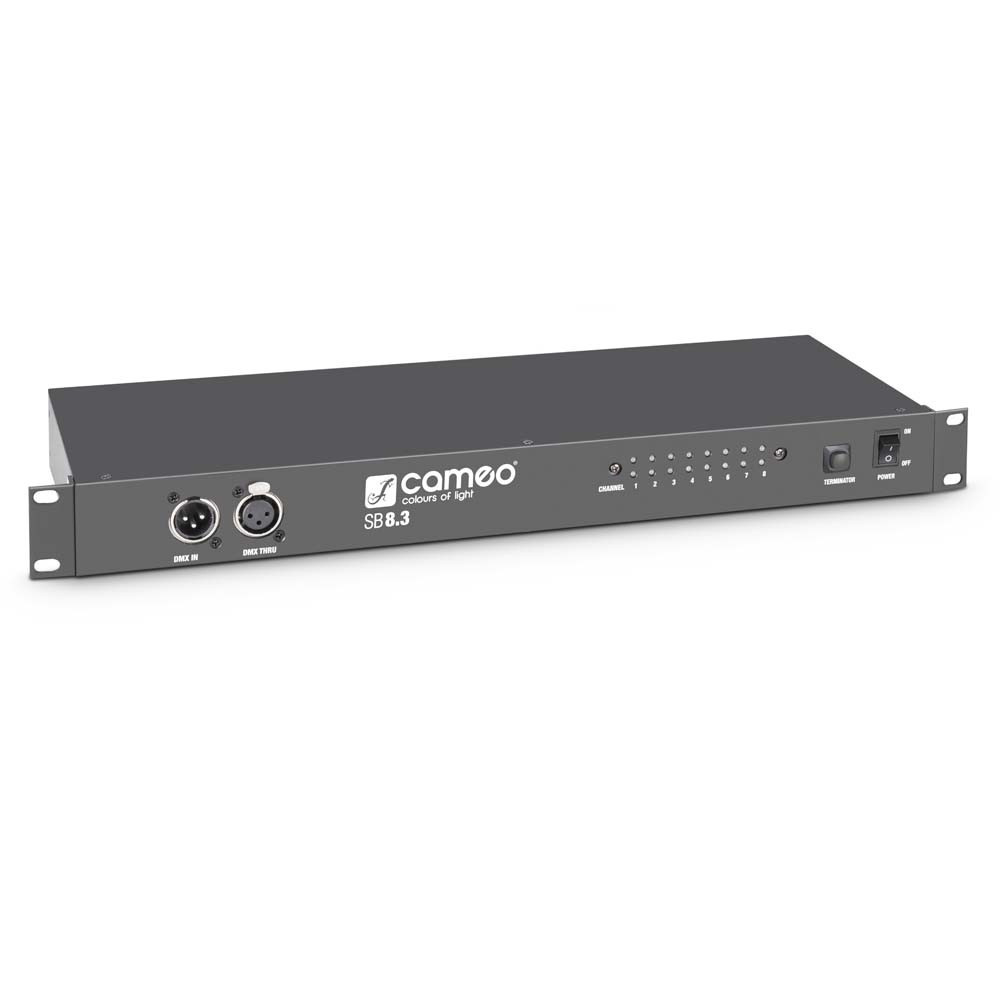

Cameo SB 8.3
Cameo SB 8.3 - Slika 2
Cameo SB 8.3 - Slika 3
Cameo SB 8.3 - Slika 4
Cameo SB 8.3 - Slika 5

Cameo SB 8.3

220,00 €

MSRP: 310,00 €

8-channel DMX splitter / booster (3-pin)

Professional 8-way DMX splitter / booster
Housing 1HE 19” for rack installation

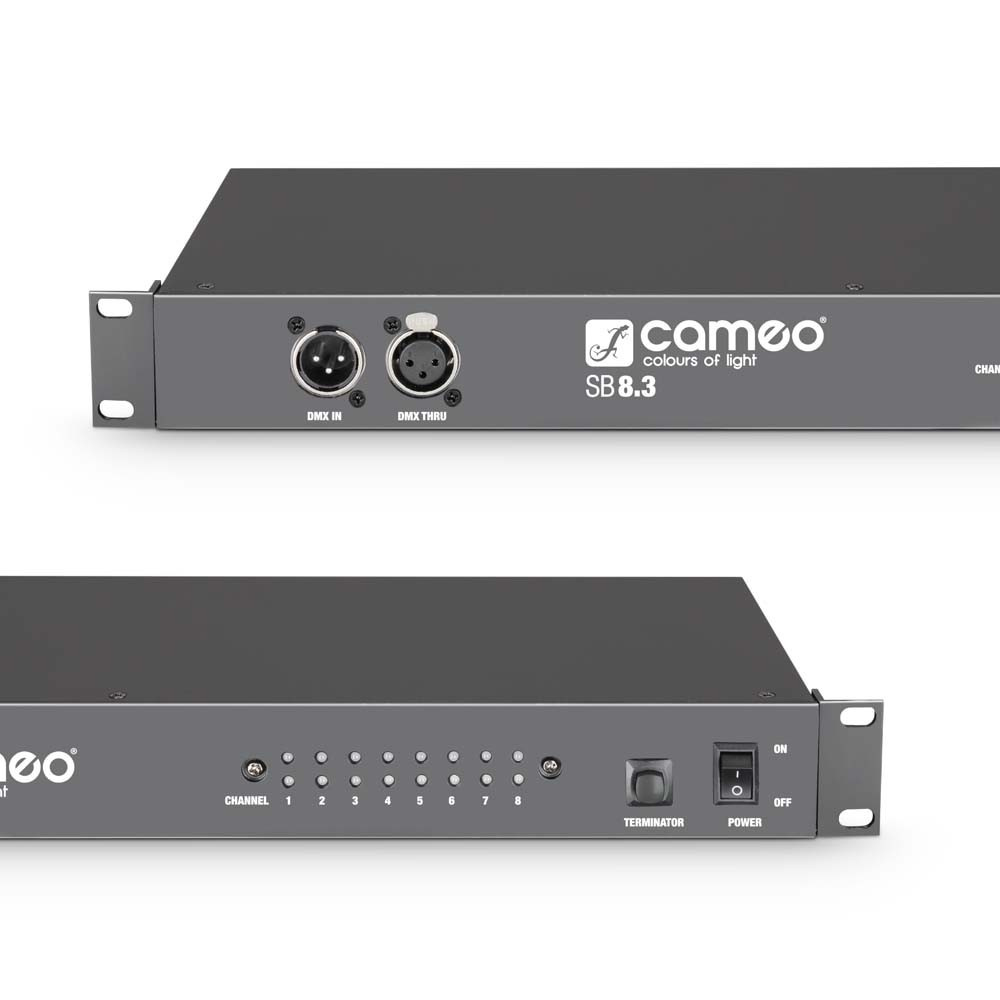

DMX INPUT: 1x XLR (3-pin) front, 1x XLR (3-pin) rear
DMX THRU: 1x XLR (3-pin) front, 1x XLR (3-pin) rear

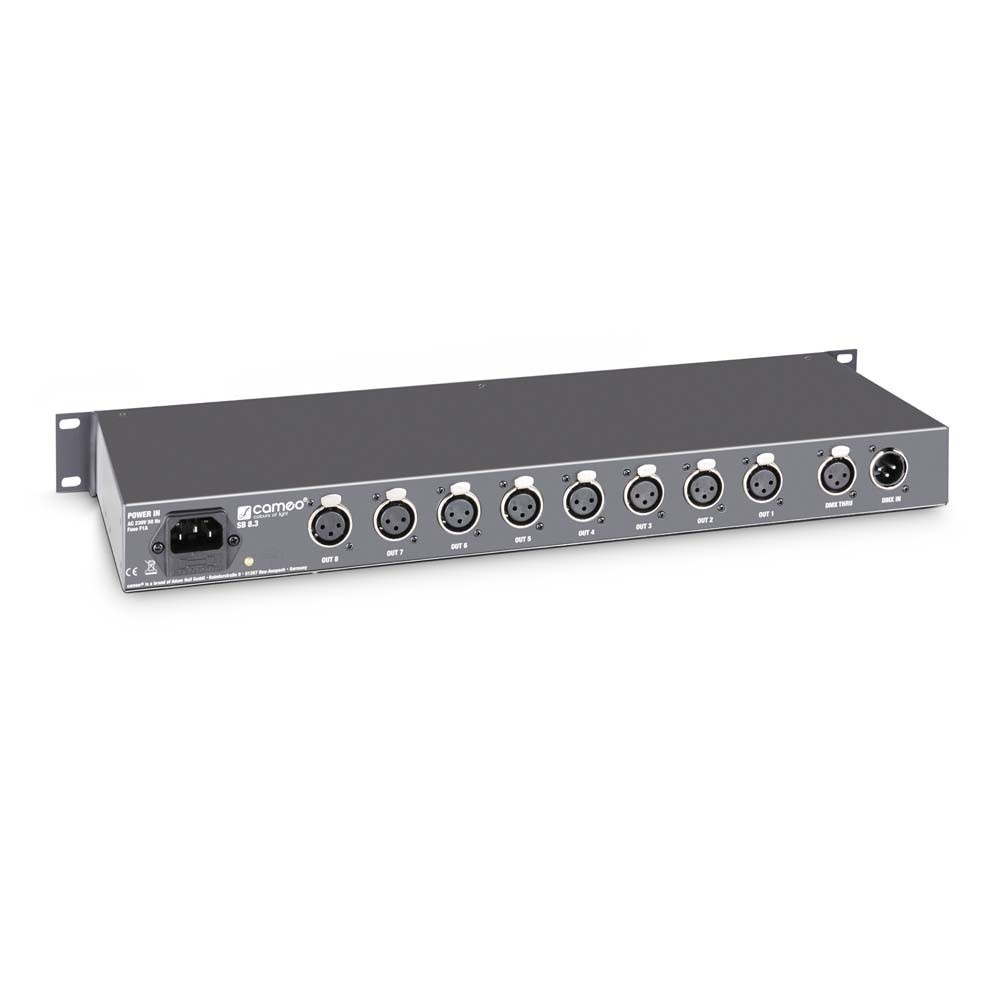

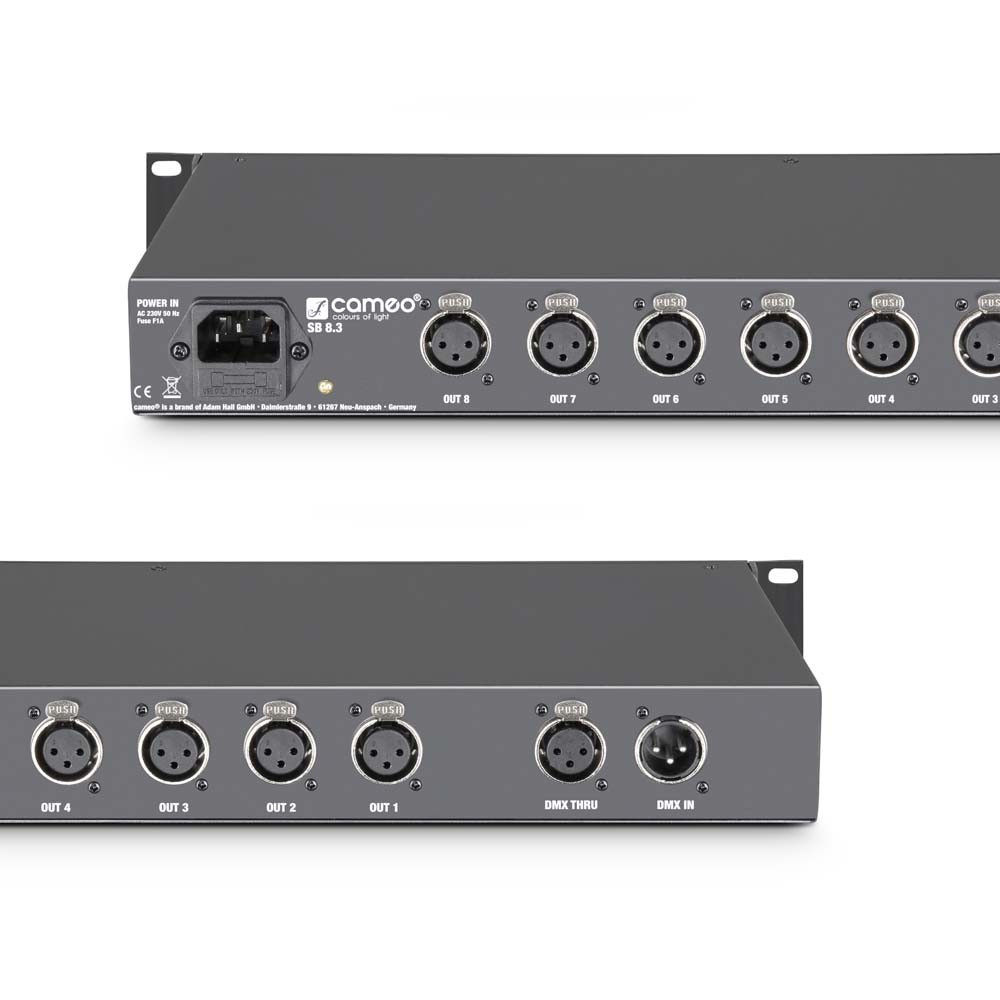

8 galvanically isolated XLR (3-pin) outputs on the rear panel
DMX status display per channel
Power status indicator
Switchable 120 Ohm termination resistor for the DMX THRU output socket

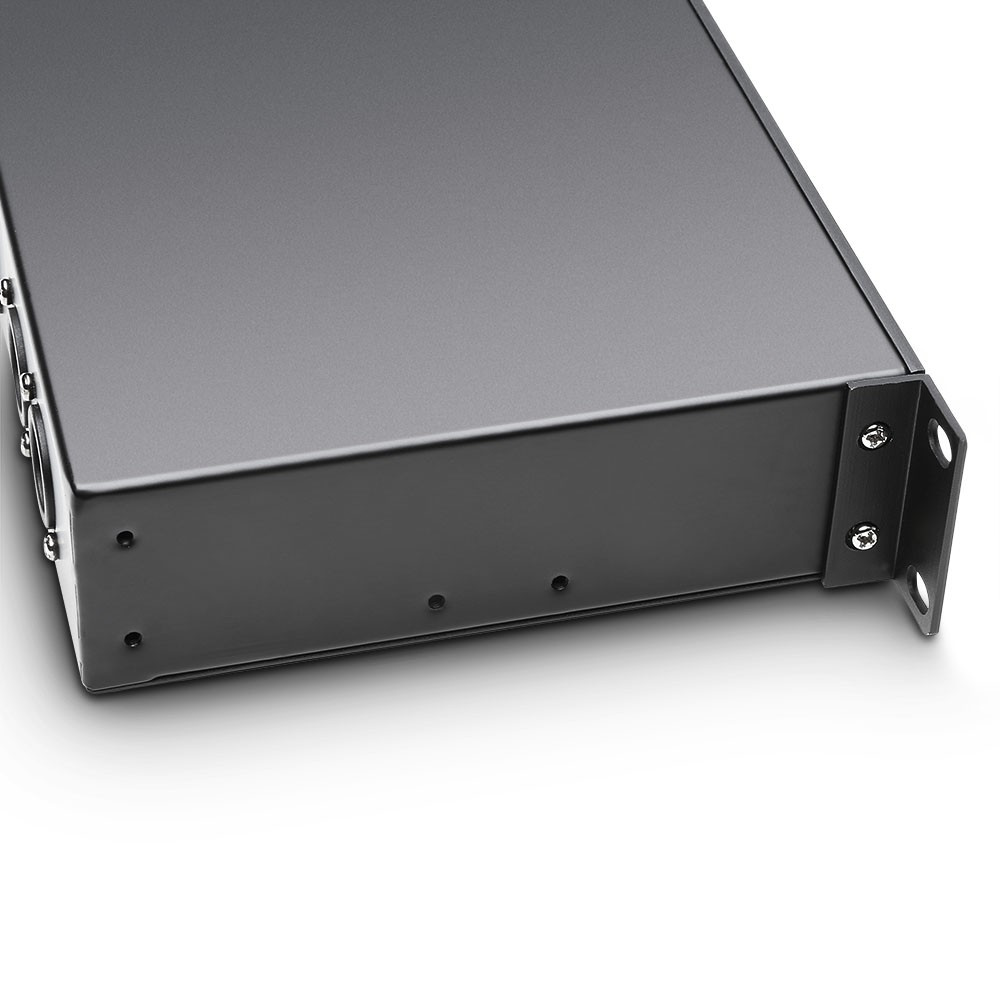

Rack brackets can be mounted at the front and rear

SKU: 3409 Brand:

Opis

Type: DMX Splitter/Booster
DMX inputs: 2 (parallel)
DMX input connections: XLR 3-pin male
DMX Thru Outputs: 2 (parallel)
DMX Thru output connectors: XLR 3-pin female
DMX outputs: 8 (galvanically isolated)
Controls: DMX Thru Terminator, Power On/Off
Display elements: 8 x Power LEDs, 8 x Signal LEDs
Mains connection: IEC power socket
Power supply: transformer
Operating voltage: 230V AC, 50Hz
Power consumption: 15W
Width: 483mm
Height: 44mm
Depth: 160mm
Weight: 3kg
Accessories (included): Power cable
