Guil ABZ-03

Opis

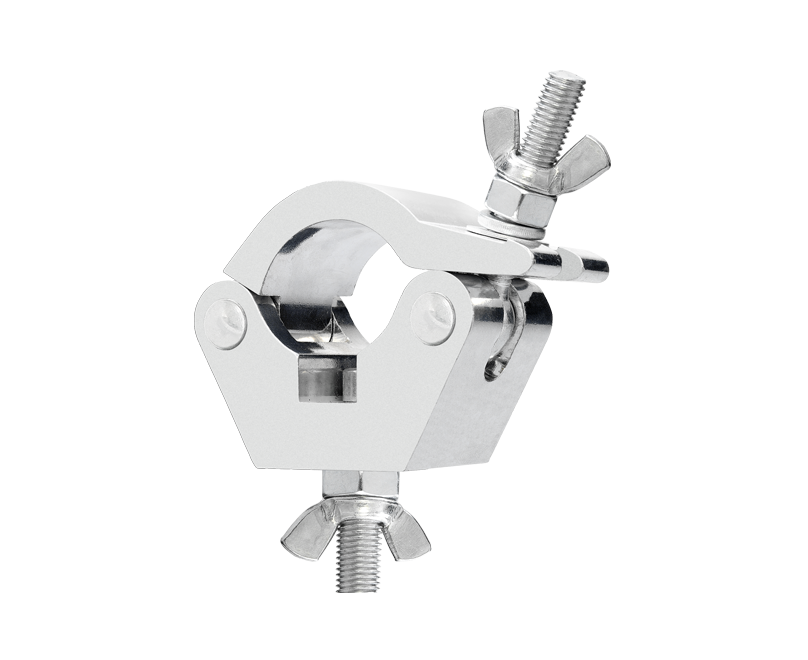

Heavy-duty aluminium half coupler for loads up to 750 kg. It comes with bolt and wing nut to secure, spotlights, electronic devices, etc. Designed to be used on trusses / tubes with an external diameter from 45 mm to 52 mm.

It has a double blocking system with nut and wing nut which makes it the right coupler to the most demanding set-ups like in theatres, live shows, events etc. where the most stringent safety requirements must be met.

ABZ-03 multi-purpose clamp coupler is used in various fields: entertainment industry, theatre, construction, etc. It combines strength and durability with a high level of safety thanks to its 50 mm thickness.

Substituting the bolt and wing nut for an eye nut or a second clamp (converting it into a swivel coupler) it can be used for other functions.

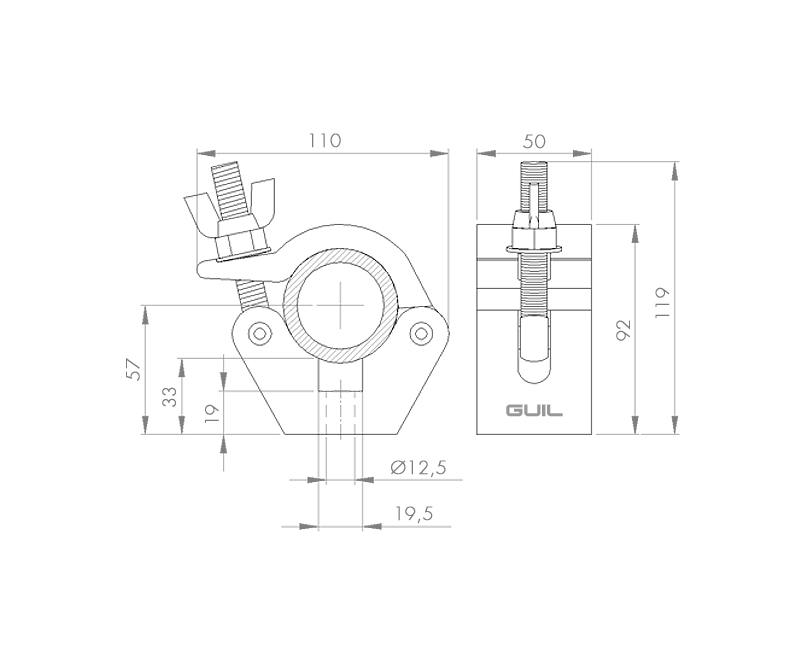

SPECIFICATIONS:
Maximum Load: 750 kg

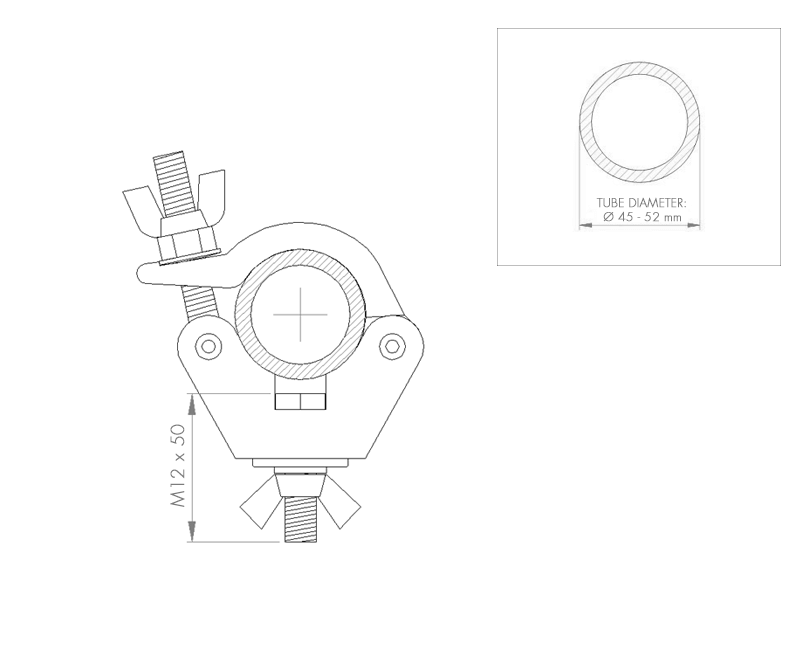

For tube diameters: 45 to 52 mm
Width: 50 mm
Fixings: M12 x 50 with wing nut and washer
Material: Aluminium
Colour: Aluminium
Net Weight: 0,71 kg
