Guil ABZ-21/N

Opis

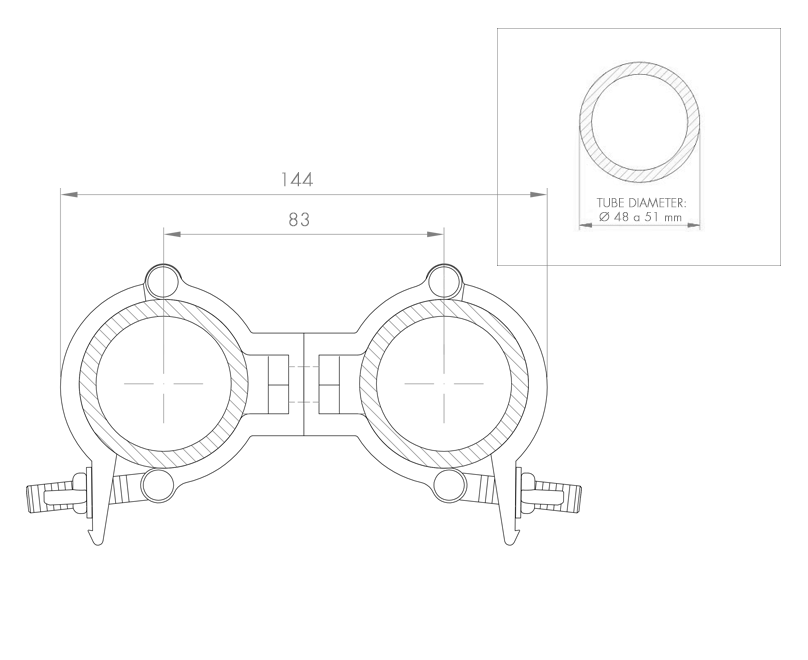

Light-weight aluminium double swivel clamp coupler (Swivelling 360º). Designed to be used on trusses / tubes with an external diameter from 48 mm to 51 mm.

Its versatility provides a secure attachment of two tubes in different positions: adjacent, perpendicular, parallel tubes etc. ABZ-21/N combines durability with safety, being the perfect option for your standard set-ups.

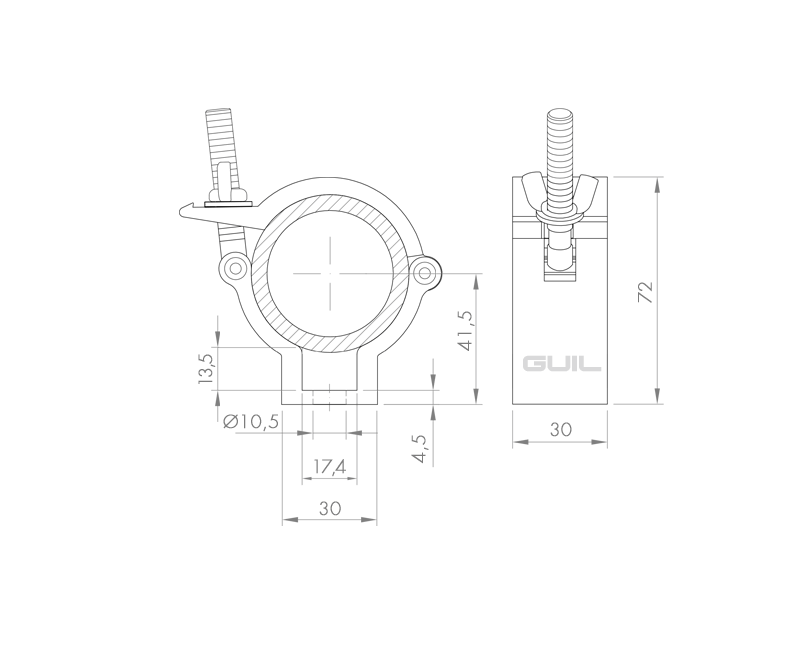

By removing the M8 joining screw the clamps can be used independently and then other fixtures can be added such as an eye nut, a bolt and wing nut (then being Ref. ABZ-20/N / Ref. ABZ-00/N) for other functions.

SPECIFICATIONS:
Maximum Load: 100 kg
For tube diameters: 48 to 51 mm
Width: 30 mm
Tube Centres: 73 mm
Material: Aluminium
Colour: Black
Net Weight: 0,24 kg
