Guil ABZ-30/N

Opis

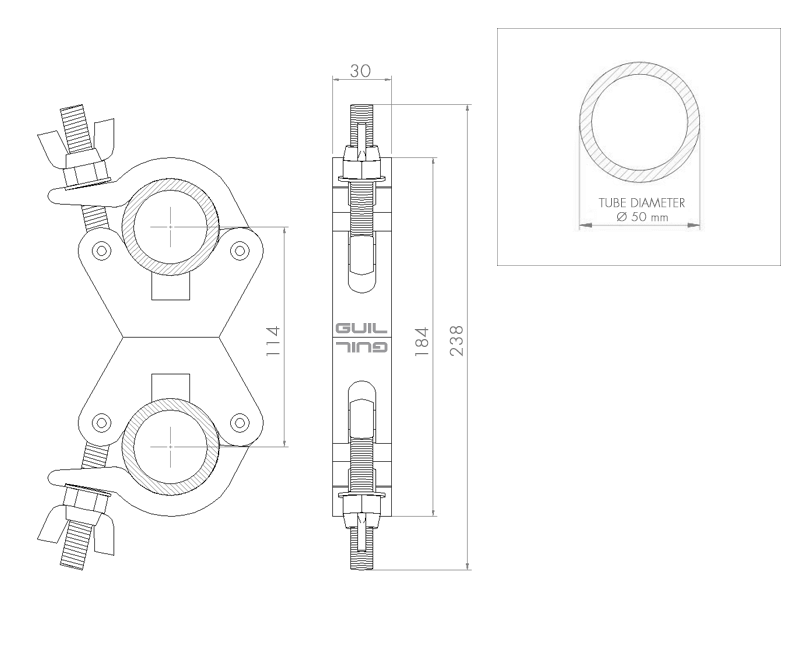

Aluminium double swivel clamp coupler (Swivelling 360º), specially designed for heavy loads (500kg). Designed to be used on trusses / tubes with an external diameter from 45 to 52 mm.

Its versatility provides a secure attachment of two tubes in different positions: adjacent, perpendicular, parallel tubes etc. This coupler is similar to the ABZ-05 but thinner (30 mm), which makes it more appropriate for installations where a high load capacity is required but the space on the tube where the coupler is to be fitted is limited.

This sturdy multi-purpose clamp coupler is used in various fields: entertainment industry, theatre, construction, etc. ABZ-30/N combines strength and durability with a high level of safety.

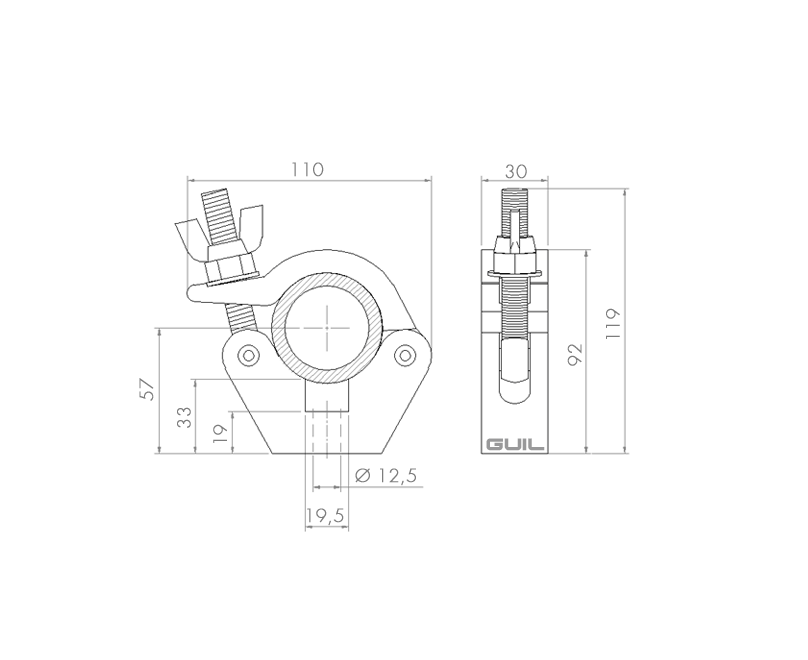

By removing the M12 joining screw they can be used as independent clamps and then other endings can be added such as an eye nut or a bolt and wing nut (then being ref. ABZ-34 / Ref. ABZ-35) for other functions.

SPECIFICATIONS:
Maximum Load: 500 kg
For tube diameters: 45 to 52 mm
Width: 30 mm
Tube Centres: 114 mm
Material: Aluminium
Colour: Black
Net Weight: 0,86 kg
