Guil ABZ-35

Opis

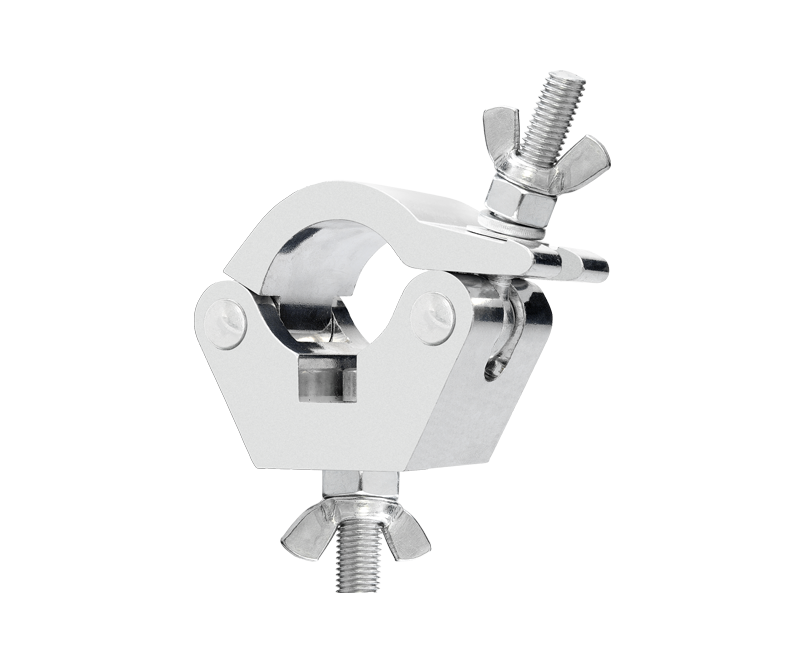

Aluminium half coupler for heavy loads (500 kg). It comes with bolt and wing nut to secure, spotlights, electronic devices, etc. Designed to be used on trusses / tubes with an external diameter from 45 mm to 52 mm.

Double blocking system with nut and wing nut which makes it the right coupler to the most demanding set-ups like in events, theatres, live shows, etc. where the most stringent safety requirements must be met.

Being thinner than the ref. ABZ-03 makes it more appropriate for larger installations but where the space required for the installation of the clamp is limited.

This practical multi-purpose clamp coupler is used in various fields: entertainment industry, theatre, construction, etc. ABZ-35 combines strength and durability with a high level of safety.

It can be used for other functions, just substituting the bolt and wing nut for an eye nut or a second clamp (converting it into a swivel coupler), or any other fixture.

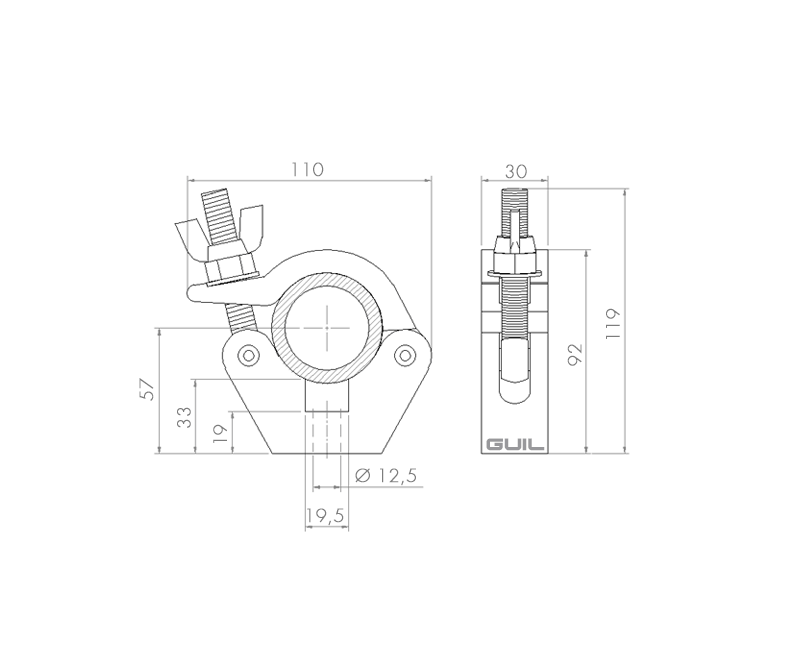

SPECIFICATIONS:
Maximum Load: 500 kg
For tube diameters: 45 to 52 mm
Width: 30 mm
Fixings: M12 x 50 with wing nut and washer
Material: Aluminium
Colour: Aluminium
Net Weight: 0,48 kg
