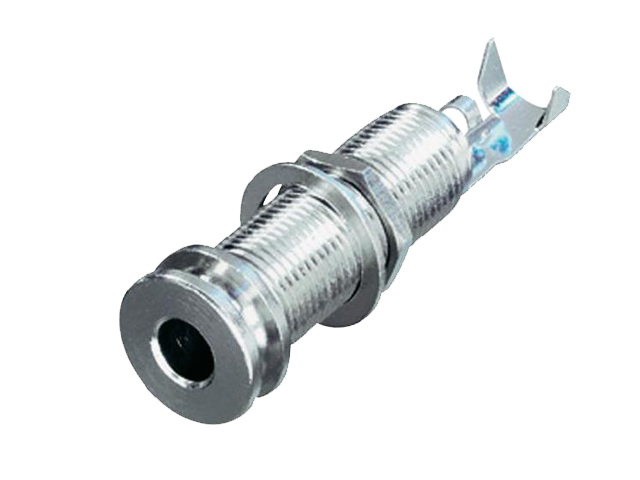

Rean NYS 221
2,20 €
MSRP: 2,60 €
3 pole 1/4” jack for thick panels, special designed head for guitar strap, long-threaded bushing with washer and nut, full metal
Opis
Title: NYS221
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Material
Insulation: Thermoplastic
Environmental
Temperature range: -20 °C to +70 °C
