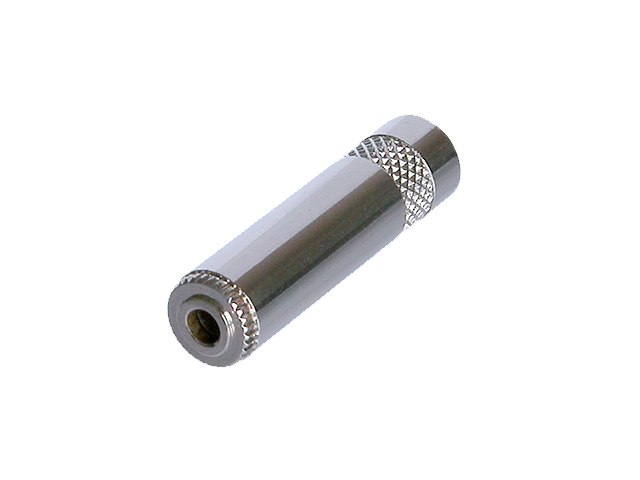

Rean NYS 240

Opis

Title: NYS240
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Mechanical
Cable O.D.: 4 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Material
Insulation: Thermoplastic
Environmental
Temperature range: -25 °C to +70 °C
