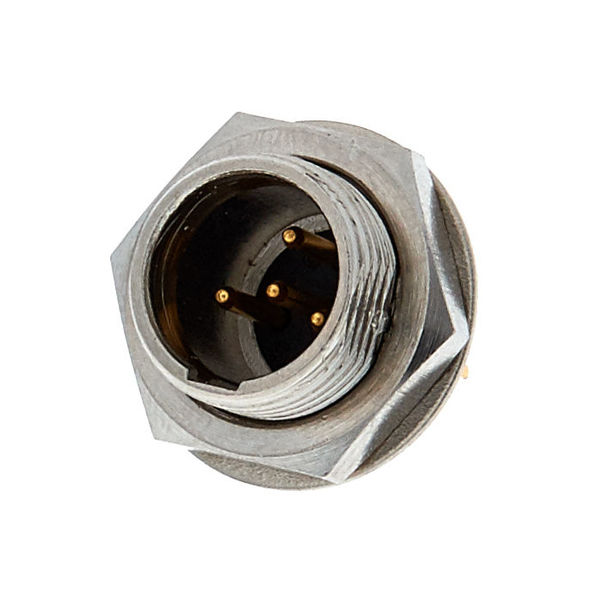

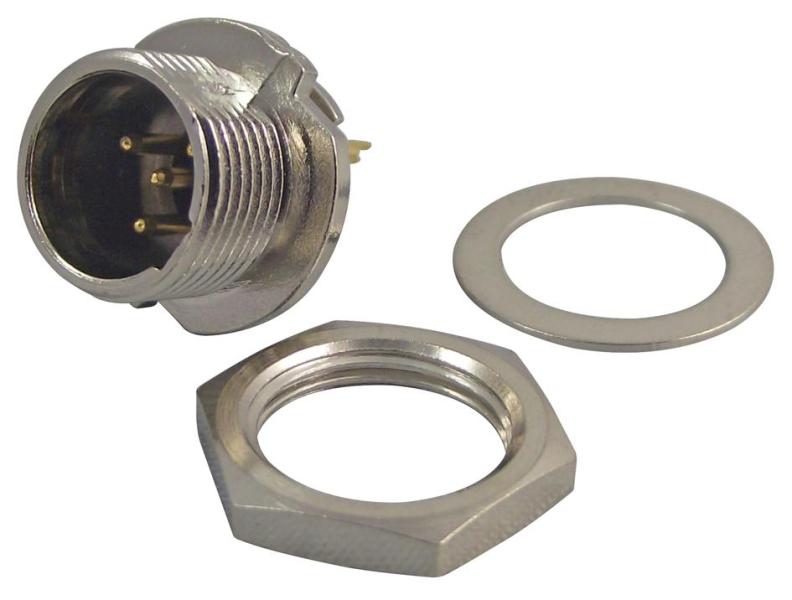

Rean RT4MPR

Opis

Nickel plated housing, gold plated contacts, max. panel thickness: 3 mm

Technical Information:
Product:
Title: RT4MPR
Connection Type: XLR
Electrical:
Contact Resistance: ≤10 mΩ
Insulation Resistance: >1 GΩ
Dielectric Strength: >500 V rms
Mechanical :
Lifetime: >1000 Mating Cycles
Wiresize: 0.22 mm²
Wiresize: 24 AWG
Material:
Housing: Zinc
Nut: Brass
Washer: Steel
Plastic Body: PA66+30%GF
Pin: Brass
Housing: Nickel Plating
Nut: Nickel Plating
Washer: Nickel Plating
Pin: Gold Plating
