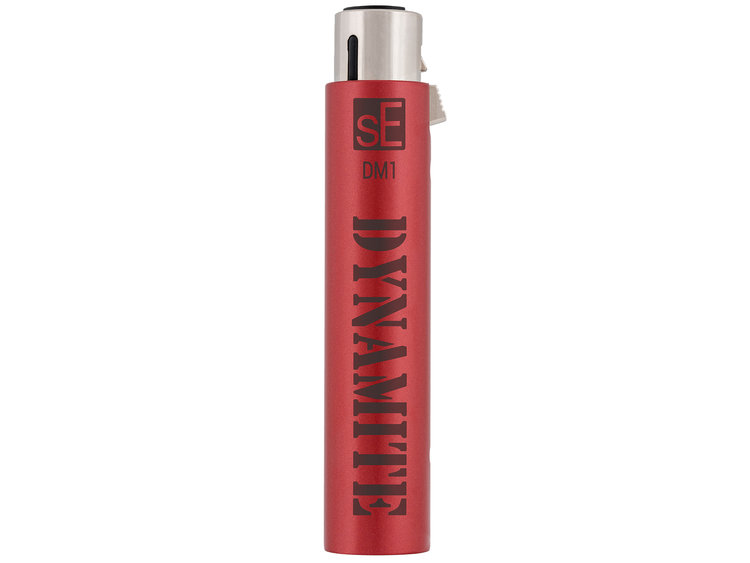

sE electronics DM1 DYNAMITE
sE electronics DM1 DYNAMITE - Slika 2
sE electronics DM1 DYNAMITE - Slika 3
sE electronics DM1 DYNAMITE - Slika 4

sE electronics DM1 DYNAMITE

110,00 €

MSRP: 125,00 €

sE electronics DM1 DYNAMITE – pretpojačalo za pasivne mikrofone

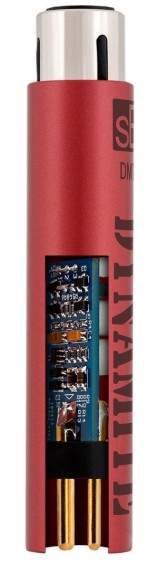

DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your passive microphones +28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD SOPHISTICATED CLASS-A ELECTRONICS DEDICATED OUTPUT BUFFER AMPLIFIER SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH GOLD-PLATED XLR CONNECTOR

SKU: 3047 Brand:

Opis

Specifications:
Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
Gain: 28 dB (load 1kOhms)
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 μV (JIS-A)
Powering: 48 Volts according toIEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm, length: 95.5 mm
Weight: 80 g

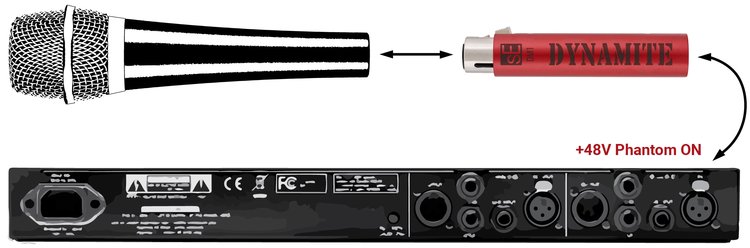

SYSTEM REQUIREMENTS:
Requirements:
input: passive microphone (ribbon/dynamic)
output: preamp/mixer/audio interface providing 48V phantom power
Limitations:
not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
